Largest Waspalloy Stockist in India. Waspalloy Sheets Supplier, AMS 5706 Waspalloy Round Bars Stockist, Waspalloy Plates Distributor. Leading Aerospace Superalloy Supplier & Exporter in Mumbai, India.
Waspaloy (UNS N07001) is a nickel-based superalloy renowned for its exceptional strength, oxidation resistance, and corrosion resistance at high temperatures. With the addition of chromium, cobalt, and molybdenum, it offers superior creep and rupture strength up to 1800°F (982°C). These properties make Waspaloy a trusted material in the aerospace and defense sectors, particularly for turbine engine components, shafts, fasteners, and other parts that demand long-term reliability under extreme thermal and mechanical stress.
Waspaloy Stockist in India

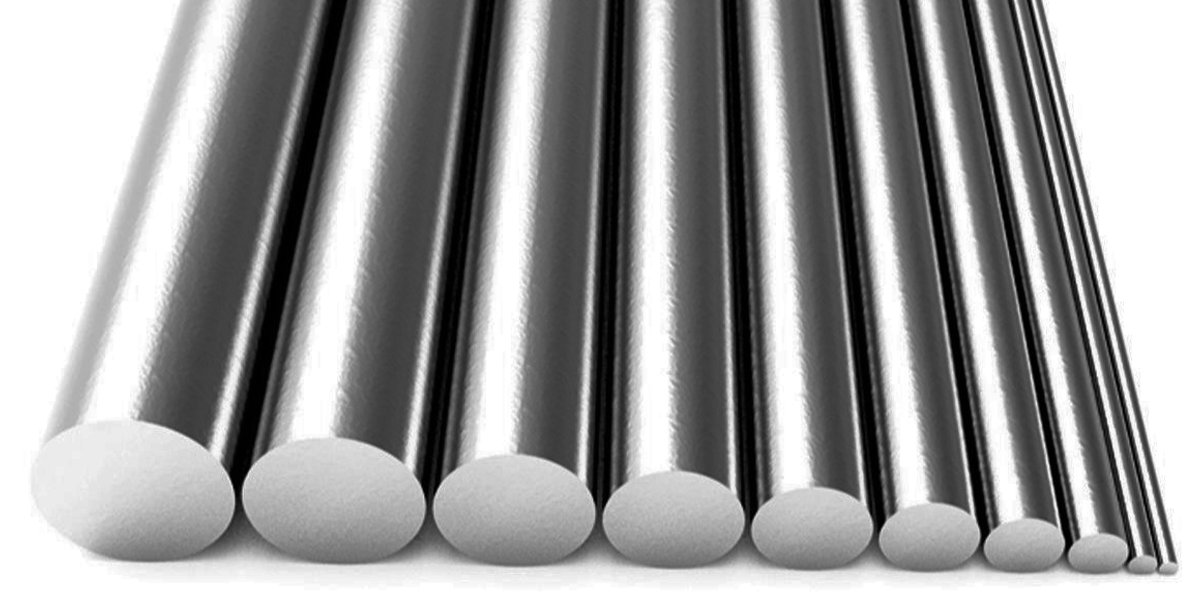

At Bhansali AeroAlloys, we supply premium-quality Waspaloy round bars, sheets, plates, and custom forms engineered to meet the rigorous standards of aerospace and defense industries. Our focus on precision manufacturing, strict quality control, and timely delivery ensures dependable performance in mission-critical applications. For technical support, custom solutions, or pricing inquiries, connect with our team today at sales@bhansaliaeroalloys.com and partner with a trusted supplier of high-performance superalloys.
Standards
- UNS: N07001
- 2.4654
Specifications
- Bar: AMS 5706
Type Analysis
| Element | Min | Max |
|---|---|---|
| Carbon | 0.02 | 0.10 |
| Manganese | -- | 0.50 |
| Silicon | -- | 0.75 |
| Chromium | 18.0 | 21.0 |
| Nickel | Balance | Balance |
| Boron | 0.003 | 0.008 |
| Iron | -- | 2.00 |
| Cobalt | 12.0 | 15.0 |
| Titanium | 2.60 | 3.25 |
| Aluminum | 1.00 | 1.50 |
| Molybdenum | 3.50 | 5.00 |
| Zirconium | 0.02 | 0.12 |
| Copper | -- | 0.10 |
| Sulfur | -- | 0.02 |
Corrosion Resistance
Waspaloy offers excellent resistance to corrosion from combustion gases in gas turbines and jet engines at temperatures up to 1600°F, though intergranular oxidation may occur at higher temperatures.
workability
- Hot Working: Perform hot working between 1850–2150°F, with a recommended furnace temperature of 2150°F. Do not exceed the range to avoid hot short tearing.
- Cold Working: Provides good ductility in the annealed state but work hardens quickly, requiring frequent annealing. Cold-worked parts should not be aged to prevent strain-age cracking.
Machinability
Waspalloy is difficult to machine in all conditions, with solution-treated material offering the best results. Use rigid machinery with cemented carbide tools, and maintain positive cuts to prevent glazing and work hardening.
Heat Treatment
Annealing: Performed at 1860–1880°F, with rapid cooling to achieve low hardness.
Hardening: Optimal stress rupture and creep resistance are obtained through high-temperature solution treatments at 1900–1975°F.
Aging: Stabilize at 1550°F for 4–24 hours, air cool, then precipitation age at 1400°F for 16 hours followed by air cooling.
Weldability
Welding should be performed in the annealed or solution-treated condition, with surfaces thoroughly cleaned. Use argon shielding to protect the molten weld pool. After welding, parts should be re-solution treated and heated rapidly through the aging range.
Mechanical Properties
| Solution Treatment | Treatment | Temp °F | Temp °C | 0.2% YS (ksi) | 0.2% YS (MPa) | UTS (ksi) | UTS (MPa) | % Elongation | % Reduction | Rockwell C |
|---|---|---|---|---|---|---|---|---|---|---|
| — | 1850°F 4hrs O.Q. | 70 | 21 | 156 | 1076 | 209 | 1441 | 27 | 47 | 42 |
| 1875°F 4hrs O.Q. | 70 | 21 | 151 | 1041 | 207 | 1427 | 28 | 49 | 41/42 | |
| 1900°F 4hrs O.Q. | 70 | 21 | 123 | 848 | 193 | 1331 | 33 | 38 | 37/38 | |
| 1925°F 4hrs O.Q. | 70 | 21 | 122 | 841 | 190 | 1310 | 32 | 37 | 36/37 | |
| 1950°F 4hrs O.Q. | 70 | 21 | 118 | 814 | 188 | 1296 | 32 | 36 | 35/36 | |
| 1975°F 3hrs O.Q. | 70 | 21 | 116 | 800 | 185 | 1276 | 31 | 35 | 35 |
Stress Rupture
| Solution Treatment | Treatment | Condition | Life 1350°F (Hrs) | % Elong | % Reduction | Life 1500°F (Hrs) | % Elong | % Reduction |
|---|---|---|---|---|---|---|---|---|
| — | 1850°F 4hrs O.Q. | + Aged | 35.3 | 32.8 | 42.2 | 5.6 | 46.5 | 30.0 |
| 1875°F 4hrs O.Q. | + Aged | 56.1 | 11.0 | 17.2 | 8.2 | 38.9 | 19.2 | |
| 1900°F 4hrs O.Q. | + Aged | 131.7 | 13.2 | 13.2 | 46.5 | 43.6 | 22.7 | |
| 1925°F 4hrs O.Q. | + Aged | 125.6 | 8.7 | 17.4 | 38.9 | 52.4 | 19.4 | |
| 1950°F 4hrs O.Q. | + Aged | 92.7 | 10.3 | 13.2 | 43.6 | 39.4 | 62.6 | |
| 1975°F 3hrs O.Q. | + Aged | 91.3 | 5.3 | 12.0 | 36.1 | 30.9 | 30.9 |
