Read MoreNimonic 90 Supplier and Stockist in India
Leading Nimonic 90 Stockist in Mumbai, India. Supplier of UNS N07090 Sheets, ASTM B637 Nimonic 90 Round Bars Distributor, DIN 2.4632 / 2.4633 Plates Supplier. Trusted Aerospace Grade Nimonic 90 Supplier & Exporter.
Nimonic 90 is a nickel-chromium-cobalt alloy strengthened by the addition of titanium and aluminum, offering excellent high-temperature strength, creep resistance, and oxidation resistance. This makes it a preferred material in aerospace and defense applications where components must withstand extreme heat and stress, such as turbine blades, jet engine parts, exhaust systems, and precision aerospace hardware. Bhansali AeroAlloys supplies Nimonic 90 in a wide range of forms including round bars, sheets, plates, and custom-engineered shapes, ensuring flexibility for aerospace and defense manufacturers with demanding performance requirements.
Nimonic 90 Stockist
At Bhansali AeroAlloys, we focus on delivering premium alloys like Nimonic 90 that meet rigorous chemical and mechanical property standards, ensuring durability and reliability in the most challenging environments. With our expertise in supplying specialty alloys and our commitment to quality and timely delivery, we are a trusted source for aerospace-grade materials worldwide. For inquiries or to request a quote for Nimonic 90 in your required form, contact us at sales@bhansaliaeroalloys.com and secure high-performance alloys tailored to your project needs.
Technical Data Sheet
Nimonic® Alloy 90 is a precipitation-hardenable nickel-chromium-cobalt alloy reinforced with titanium and aluminum. It delivers exceptional high-temperature strength, excellent stress-rupture resistance, and outstanding creep resistance up to 920°C. Thanks to these properties, Nimonic 90 is widely used in critical applications such as turbine blades, exhaust reheaters, discs, hot-working tools, and high-temperature springs.
Recommended Heat Treatments

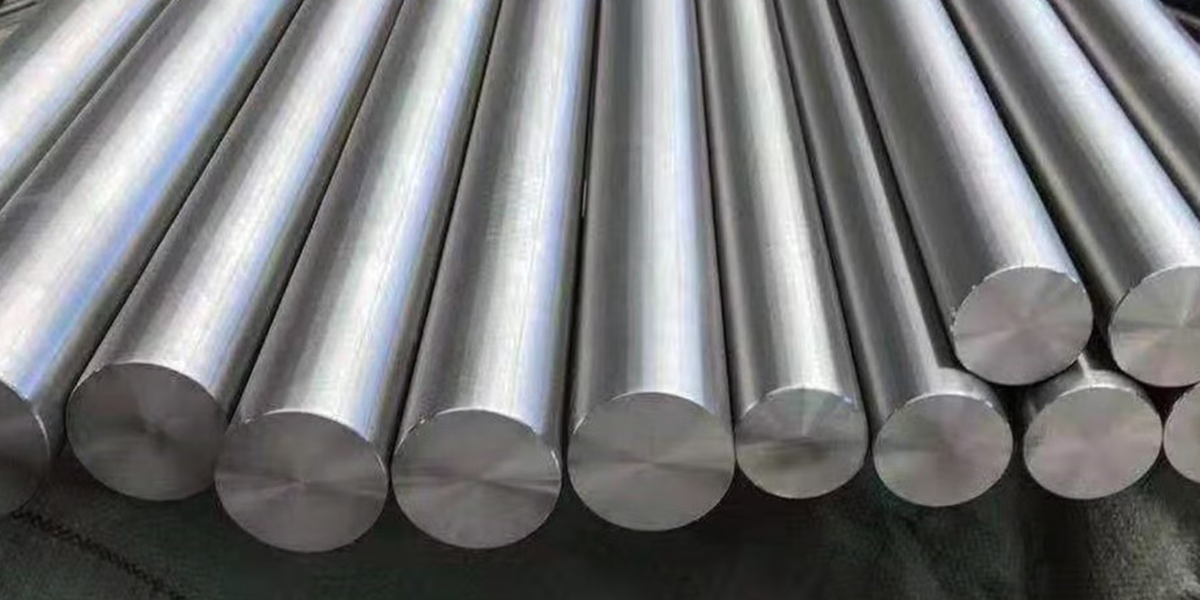

Nimonic 90 Bar
Solution Treatment: 1080°C (1975°F) for 8 hours, followed by air cooling or oil/water quenching.
Precipitation Heat Treatment (BS HR2): 700°C (1290°F) for 16 hours, followed by air cooling.
Nimonic 90 Sheet
Solution Treatment: 1100–1150°C for 1–10 minutes, followed by air cooling or oil/water quenching.
Stabilization Heat Treatment: 925°C for 1 hour, followed by air cooling.
Precipitation Heat Treatment: 750°C for 4 hours, followed by air cooling.
Chemical Composition Limits
| Weight % | Ni | Cr | Co | Ti | Al | C | Si | Cu | Fe | Mn | B | S | Zr | Pb |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Alloy 90 | Bal | 18-21 | 15-21 | 2-3 | 1-2 | 0.2 max | 1.0 max | 0.2 max | 1.5 max | 1.0 max | 0.02 max | 0.015 max | 0.15 max | 0.0020 max |
Typical Mechanical Properties
| Material | Extruded Bar | Temperature °C | Yield Strength 0.2 % (MPa) | Tensile Strength (MPa) | Elongation (%) | Hardness HV |
|---|---|---|---|---|---|---|
| Nimonic 90 bar | Solution Treated (BS HR2) | RT | - | - | - | 295 max |
| Nimonic 90 bar | Precipition Treated (BS HR2) | RT | 695 min | 1080 min | 20 min | 310 min |
| Nimonic 90 bar | Precipitation Treated (BS HR2) | 500 | 672 (typical) | 1038 (typical) | 31 | - |
| Material | Sheet | Temperature °C | Yield Strength 0.2 % (MPa) | Tensile Strength (MPa) | Elongation (%) | Hardness HV |
|---|---|---|---|---|---|---|
| Nimonic 90 sheet | Solution Treated (BS HR202) | RT | - | - | - | 250 max |
| Nimonic 90 sheet | Precipitation Treated (BS HR202) | RT | 695 min | 1080 min | 25 min (0.45mm-3.0mm) |
280 min |
| Nimonic 90 sheet | Precipitation Treated (BS HR202) | 500 | 740 (typical) | 995 (typical) | 30 | - |
| Alloy 90 Cold Rolled Sheet | (Heat Treated) | - | - | - | - | - |
Availability
Nimonic Alloy 90 (Nimonic 90) is supplied in a wide range of forms including sheet, strip, plate, round bar, wire, tube and custom forms. For detailed stock availability, email us at sales@bhansaliaeroalloys.com
Specifications
- UNS N07090
- Werkstoff Nr. 2.4632
- Werkstoff Br. 2.4969
- NiCr20Co18Ti
- NCK20TA (AIR 9165)
- BS HR2
- AMS 5829
- MSRR 7137, MSRR 7017
| Nimonic 90 bar/wire | Nimonic 90 sheet/plate/strip | Nimonic 90 Tube |
|---|---|---|
| BS HR2 Nimonic 90 bars, billet, forgings | BS HR202 Nimonic 90 sheet and strip | BS HR 402 |
| BS HR501 Nimonic 90 cold drawn wire for springs | MSRR 7087 | AECMA PrEN 2299 |
| BS HR502 Nimonic 90 cold drawn and solution treated wire for springs | AECMA PrEN 2298 | - |
| BS HR503 Nimonic 90 wire for thread inserts | Siemens TLV8525 2100 | - |
| AMS 5829 | Siemens TLV8525 31001 | - |
| AECMA PrEN 2295 | - | - |
| AECMA PrEN 2296 | - | - |
| AECMA PrEN 2297 | - | - |
| AECMA PrEN 2400 | - | - |
| AECMA PrEN 2401 | - | - |
| AECMA PrEN 2669 | - | - |
| AECMA PrEN 2670 | - | - |
| MSRR 7016 | - | - |
| MSRR 7137 | - | - |
| Siemens DL 1641-1 | - | - |
| ABB Stal 63 73 01 | - | - |
