Read MoreInvar 36 Supplier and Stockist in India

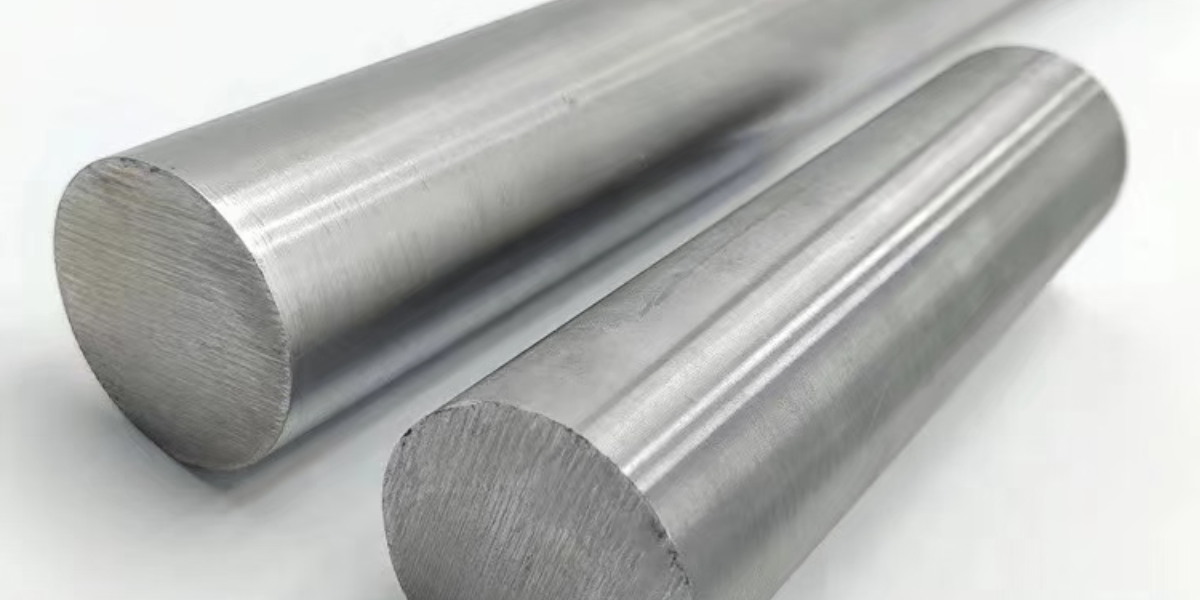

Leading Invar 36 Stockist in Mumbai, India. Supplier of Invar 36 Sheets Supplier, ASTM B388 Invar 36 Round Bars Distributor, Invar 36 Plates Exporter, Reliable Aerospace Grade Invar 36 Supplier & Exporter.
Invar 36 (UNS K93600) is a nickel-iron alloy specifically engineered to exhibit an extremely low coefficient of thermal expansion. With approximately 36% nickel content, this alloy maintains exceptional dimensional stability across a wide range of temperatures, making it indispensable for precision applications. In aerospace and defense, Invar 36 is widely used in tooling, satellite components, cryogenic systems, and precision instruments where stability under thermal fluctuations is critical for performance and safety.
Invar 36 Stockist
At Bhansali AeroAlloys, we deliver high-quality Invar 36 round bars, sheets, plates, and custom forms tailored to meet the demanding requirements of aerospace and defense industries. Our commitment to precision manufacturing, strict quality standards, and on-time delivery ensures reliable materials for mission-critical applications. For technical support, tailored solutions, or pricing inquiries, connect with our expert team today at sales@bhansaliaeroalloys.com and partner with a trusted supplier of advanced specialty alloys.
Specifications
- UNS: K93600
- W.Nr: 1.3912
- ASTM: B388 / F1684
- AFNOR: NF A54-301
- BS: 3076 NA 36
Type Analysis
| Element | Min | Max |
|---|---|---|
| Carbon | -- | 0.15 |
| Nickel | 36.0 nominal | -- |
| Phosphorus | -- | 0.006 |
| Iron | Balance | -- |
| Silicon | -- | 0.40 |
| Manganese | -- | 0.60 |
| Sulfur | -- | 0.004 |
| Chromium | -- | 0.25 |
| Cobalt | -- | 0.50 |
Applications
Used in radio and electronic devices, aircraft controls, optical and laser systems, bimetallic thermostats, and rod and tube assemblies for temperature regulators.
Physical Properties
| Property | Value |
|---|---|
| Specific Gravity | 8.05 |
| Density (lb/in³) | 0.291 |
| Density (kg/m³) | 8055 |
| Thermal Conductivity (Btu-in/ft²/hr/°F) | 72.6 |
| Thermal Conductivity (W/m·K) | 10.5 |
| Electrical Resistivity (ohm-cir mil/ft) | 495 |
| Electrical Resistivity (microhm-mm) | 820 |
| Temperature Coefficient of Electrical Resistivity per °F (70–212°F) | 0.0006 |
| Temperature Coefficient of Electrical Resistivity per °C (21–100°C) | 0.0011 |
Mean Coefficient of Thermal Expansion
| Temperature (°F) | Temperature (°C) | in/in/°F x 10⁻⁶ | cm/cm/°C x 10⁻⁶ |
|---|---|---|---|
| 200 | 93 | 0.72 | 1.30 |
| 300 | 149 | 1.17 | 2.11 |
| 500 | 260 | 2.32 | 4.18 |
| 700 | 371 | 4.22 | 7.60 |
Heat Treatment
| Application | Time/Temp | Cooling |
|---|---|---|
| Full Anneal | 1 hr at 1550°F or 2 hrs at 1350°C | Air or oven cool |
| Stress Relieve Anneal (optional) | 2 hrs at 600°F | Air or oven cool |
Workability Notes
| Process | Details |
|---|---|
| Forging | Heat quickly to 2000–2150°F; avoid long soaking to prevent surface checks or sulfur pickup. |
| Coolant | Use Cool Tool coolant to control heat buildup, reduce friction, and prevent warpage. |
| Tooling | Use T-15, M-3 Type 2, or recommended carbide tools; maintain tool edges in excellent condition. |
Machining Recommendations
| Operation | Tool | Specifications |
|---|---|---|
| Turning | Steel Cutting Tools | Feed ~0.010–0.012" per rev, 35 FPM; End angle ~7°, Nose radius ~0.005", Side angle ~15°, Back rake ~8°, Side rake ~8°. |
| Cut-Off | High Speed Tools | Feed ~0.001" per rev, large tip angle >25°, front clearance ~7°. |
| Welding | Conventional | Avoid overheating; use Invarod filler rod as required. |
| Drilling | 3/16" & 1/2" drills | 40 FPM; 3/16" feed ~0.002–0.0025" per rev, 1/2" feed ~0.004–0.005" per rev; use short drills, point angle 118°–120°. |
| Reaming | Reamers | Half drill speed; feed 3× drill feed; margin 0.005–0.010", chamfer 0.005–0.010" at 30°. |
| Tapping | 2–3 fluted taps | Use tap drill slightly larger than standard; face hook 8°–10°; speed ~20 FPM. |
Metal Removal Data
| Operation | Tool/Size | SFM | Feed |
|---|---|---|---|
| Turning & Forming | 1/16" Cut-Off Tool | 65 | 0.0010 |
| 1/8" Cut-Off Tool | 67 | 0.0012 | |
| 1/4" Cut-Off Tool | 69 | 0.0016 | |
| 1/2" Tool | 67 | 0.0012 | |
| 1" Tool | 63 | 0.0010 | |
| 1-1/2" Tool | 63 | 0.0009 | |
| Drilling | 3/8" Drill | 43 | 0.0030 |
| 3/4" Drill | 45 | 0.0036 | |
| Reaming | Under 1/2" | 57 | 0.0030 |
| Over 1/2" | 57 | 0.0045 | |
| Threading | 3–7½ TPI | 8 | -- |
| 8–15 TPI | 10 | -- | |
| Over 16 TPI | 16 | -- | |
| Tapping | 3–7½ TPI | 6 | -- |
| 8–15 TPI | 7 | -- | |
| 16–24 TPI | 11 | -- | |
| Over 25 TPI | 16 | -- | |
| Milling | General | 35–70 | 0.002–0.005 |
| Broaching | General | 8–12 | 0.001–0.005 |
| Turning | Single Point & Box Tools (High Speed) | 60–65 | 0.0029–0.0043 |
| Single Point & Box Tools (Carbide) | 160–215 | 0.025–0.080 |
