Read MoreHastelloy X Supplier and Stockist in India
Largest Hastelloy X Stockist in Mumbai, India. Exporter of UNS N06002 Sheets, ASTM B572 Hastelloy X Round Bars Stocksit, DIN 2.4665 Plates Dealer. Reliable Aerospace Grade Hastelloy X Supplier & Exporter.
Hastelloy X (UNS N06002) is a nickel-chromium-iron-molybdenum alloy renowned for its excellent oxidation resistance and high strength at elevated temperatures. With superior resistance to carburization and stress-corrosion cracking, Hastelloy X is widely used in aerospace and defense applications where materials must withstand extreme thermal and mechanical stress. Its stability and performance in high-temperature environments make it a preferred choice for components such as gas turbine engines, combustion zones, and other demanding aerospace systems.

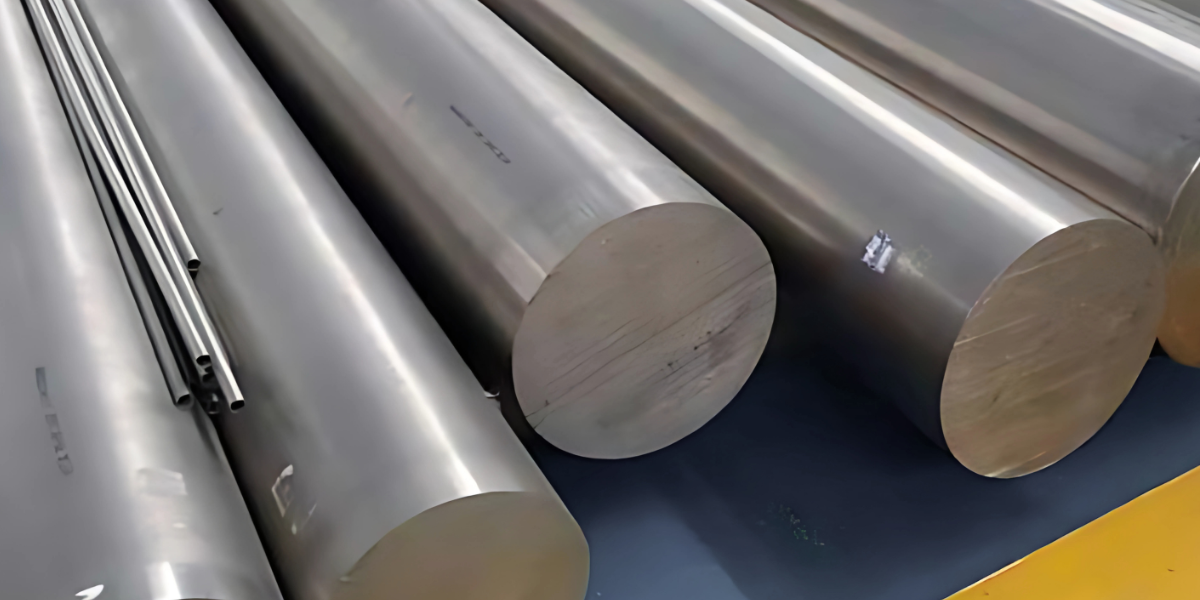

Hastelloy X Stockist
At Bhansali AeroAlloys, we supply top-grade Hastelloy X round bars, sheets, plates, and custom forms designed to meet the critical needs of the aerospace and defense industries. Our commitment to precision, quality assurance, and on-time delivery ensures reliability for mission-critical applications. For technical guidance, quotations, or custom solutions, contact our expert team today at sales@bhansaliaeroalloys.com and trust a proven partner in high-performance alloys.
Standards
- UNS N06002
- 2.4665
Sizes Available
- Sheets / Plates / Coils: 0.8mm (0.032”) to 50.8mm (2”)
(Larger sizes available on request) - Round Bars / Wires: 1.6mm DIA to 254mm DIA
(Larger sizes available on request)
Specifications
- Plate: AMS 5536, ASTM-B-435
- Sheet: AMS 5536, ASTM-B-435
- Bar: AMS 5754, ASTM-B-572, ASME-SB-572
Type Analysis
| Element | Min (%) | Max (%) |
|---|---|---|
| Molybdenum | 8.00 | 10.0 |
| Chromium | 20.5 | 23.0 |
| Iron | 17.0 | 20.0 |
| Tungsten | 0.20 | 1.00 |
| Cobalt | 0.50 | 2.50 |
| Carbon | 0.05 | 0.015 |
| Silicon | -- | 1.00 |
| Manganese | -- | 1.00 |
| Boron | -- | 0.01 |
| Phosphorus | -- | 0.04 |
| Sulfur | -- | 0.03 |
| Nickel | Remainder | -- |
workability
Hastelloy X can be forged and, because of its good ductility, can be cold-worked. It can be welded by both manual and automatic welding methods including shielded metal-arc (coated electrodes), gas tungsten-arc (TIG), and gas metal-arc (MIG). Alloy X can also be resistance-welded.
machinability
Low cutting speeds, rigid tools and work piece, heavy equipment, ample coolant and positive feeds are general recommendations.
High-Speed Cutting Tools for Lathe Turning Operations
| Angle | Roughing | Finishing |
|---|---|---|
| Back rake | 0° | 8° |
| Positive side rake | 6° | 14° to 18° |
| End clearance | 6° | 8° |
| End cutting edge | -- | 25° |
| Side cutting edge | -- | Up to 45° |
Cutting Speeds for High-Speed Steels
| Operation | Speed (sfpm) | Speed (m/s) | Feed (ipr) | Feed (mm/rev) |
|---|---|---|---|---|
| Turning | 12-20 | 0.06 / 0.010 | 0.010 | 0.25 |
| Drilling (.500"/12.70mm) | 10-12 | 0.05 / 0.06 | 0.006 / 0.010 | 0.15 / 0.25 |
| Tapping | 5-10 | 0.03 / 0.05 | -- | -- |
| Milling | 10-20 | 0.05 / 0.10 | -- | -- |
| Reaming | 8-10 | 0.04 / 0.05 | -- | -- |
Average Physical Properties
| Physical Property | °F | British Units | °C | Metric Units |
|---|---|---|---|---|
| Density | 72 | 0.297 lb./cubic in. | 22 | 8.22 g/cubic cm. |
| Melting Range | 2300-2470 | -- | 1260-1355 | -- |
| Electrical Resistivity | 72 | 46.6 microhm-in. | 22 | 1.18 microhm-m |
| Mean Coefficient of Thermal Expansion | 79-200 | 7.7 microin./in.-°F | 26-100 | 13.8 × 10-6 m/m-K |
| 79-1000 | 8.4 microin./in.-°F | 26-500 | 14.9 × 10-6 m/m-K | |
| 79-1200 | 8.6 microin./in.-°F | 26-600 | 15.3 × 10-6 m/m-K | |
| 79-1350 | 8.8 microin./in.-°F | 26-700 | 15.7 × 10-6 m/m-K | |
| 79-1500 | 8.9 microin./in.-°F | 26-800 | 16.0 × 10-6 m/m-K | |
| 76-1650 | 9.1 microin./in.-°F | 26-900 | 16.3 × 10-6 m/m-K | |
| 79-1800 | 9.2 microin./in.-°F | 26-1000 | 16.6 × 10-6 m/m-K | |
| Thermal Conductivity | 70 | 63 Btu-in/ft²-hr-°F | 20 | 9.7 W/m-K |
| 200 | 76 Btu-in/ft²-hr-°F | 100 | 11.1 W/m-K | |
| 500 | 98 Btu-in/ft²-hr-°F | 300 | 14.7 W/m-K | |
| 1100 | 144 Btu-in/ft²-hr-°F | 600 | 20.6 W/m-K | |
| 1300 | 159 Btu-in/ft²-hr-°F | 700 | 22.8 W/m-K | |
| 1500 | 174 Btu-in/ft²-hr-°F | 800 | 25.0 W/m-K | |
| 1700 | 189 Btu-in/ft²-hr-°F | 900 | 27.4 W/m-K | |
| Poisson's Ratio | -78/22 | 0.328 / 0.320 | -108/72 | 0.328 / 0.320 |
| Magnetic Permeability | Room | <1.002 at 200 oersteds | -- | 15,900 A/m |
Average Dynamic Oxidation Resistance
| Test Temp. °F (°C) | Test Period (hrs) | Metal Loss/Side mils (mm) | Max Penetration/Side mils (mm) | Total Metal Affected Side mils (mm) |
|---|---|---|---|---|
| 1600 (871) | 100 | 0.3 (0.01) | 0.5 (0.01) | 0.8 (0.02) |
| 1000 | 1.2 (0.03) | 3.2 (0.08) | 4.5 (0.11) | |
| 1800 (982) | 100 | 0.9 (0.02) | 1.1 (0.03) | 2.0 (0.05) |
| 1000 | 1.7 (0.04) | 4.1 (0.10) | 5.8 (0.15) | |
| 1900 (1038) | 100 | 0.9 (0.02) | 1.7 (0.04) | 2.5 (0.06) |
| 2000 (1093) | 100 | 1.4 (0.04) | 2.3 (0.04) | 3.7 (0.09) |
| 2100 (1149) | 100 | 1.9 (0.05) | 2.4 (0.06) | 4.4 (0.11) |
